M-CSF/CSF1 ELISA Kit

Catalog No. ABIN625043

Product Details M-CSF/CSF1 ELISA Kit

Target: M-CSF/CSF1 (CSF1) (Colony Stimulating Factor 1 (Macrophage) (CSF1))

Reactivity: Human

Detection Method: Colorimetric

Method Type: Sandwich ELISA

Detection Range: 5-2000 pg/mL

Minimum Detection Limit: 5 pg/mL

Application: ELISA

Purpose: Human M-CSF ELISA Kit for cell culture supernatants, plasma, and serum samples.

Sample Type: Plasma, Cell Culture Supernatant, Serum

Analytical Method: Quantitative

Specificity: This ELISA kit shows no cross-reactivity with any of the cytokines tested: Human Angiogenin, BDNF, BLC, ENA-78, FGF-4, IL-1 alpha, IL-1 beta, IL-2, IL-3, IL-4, IL-5, IL-7, IL-8, IL-9, IL-10, IL-11, IL-12 p70, IL-12 p40, IL-13, IL-15, I-309, IP-10, G-CSF, GM-CSF, IFN-gamma, Leptin, MCP-1, MCP-2, MCP-3, MDC, MIP-1 alpha, MIP-1 beta, MIP-1 delta, PARC, PDGF, RANTES, SCF, TARC, TGF-beta, TIMP-1, TIMP-2, TNF-alpha, TNF-beta, TPO, VEGF.

Sensitivity: < 5 pg/mL

Characteristics:

• Strip plates and additional reagents allow for use in multiple experiments
• Quantitative protein detection
• Establishes normal range
• The best products for confirmation of antibody array data

Components:

• Pre-Coated 96-well Strip Microplate
• Wash Buffer
• Stop Solution
• Assay Diluent(s)
• Lyophilized Standard
• Biotinylated Detection Antibody
• Streptavidin-Conjugated HRP
• TMB One-Step Substrate

Material not included:

• Distilled or deionized water
• Precision pipettes to deliver 2 μL to 1 μL volumes
• Adjustable 1-25 μL pipettes for reagent preparation
• 100 μL and 1 liter graduated cylinders
• Tubes to prepare standard and sample dilutions
• Absorbent paper
• Microplate reader capable of measuring absorbance at 450nm
• Log-log graph paper or computer and software for ELISA data analysis

Application Details

Application Notes: Recommended Dilution for serum and plasma samples2 fold

Sample Volume: 100 μL

Plate: Pre-coated

Protocol:

1. Prepare all reagents, samples and standards as instructed in the manual.
2. Add 100 μL of standard or sample to each well.
3. Incubate 2.5 h at RT or O/N at 4 °C.
4. Add 100 μL of prepared biotin antibody to each well.
5. Incubate 1 h at RT.
6. Add 100 μL of prepared Streptavidin solution to each well.
7. Incubate 45 min at RT.
8. Add 100 μL of TMB One-Step Substrate Reagent to each well.
9. Incubate 30 min at RT.
10. Add 50 μL of Stop Solution to each well.
11. Read at 450 nm immediately.

Reagent Preparation:

1. Bring all reagents and samples to room temperature (18 - 25 °C) before use.
   2. Sample dilution: If your samples need to be diluted, Assay Diluent A (Item D) should be used for dilution of serum/plasma samples. 1x Assay Diluent B (Item E) should be used for dilution of culture supernatants and urine. Suggested dilution for normal serum/plasma: 2 fold. Please note that levels of the target protein may vary between different specimens. Optimal dilution factors for each sample must be determined by the investigator.
   3. Assay Diluent B should be diluted 5-fold with deionized or distilled water.
   4. Preparation of standard: Briefly spin the vial of Item C and then add 400 µL Assay Diluent A (for serum/plasma samples) or 1x Assay Diluent B (for cell culture medium and urine) into Item C vial to prepare a 50 ng/mL standard. Dissolve the powder thoroughly by a gentle mix. Add 40 µL MCSF standard from the vial of Item C, into a tube with 960 µL Assay Diluent A or 1x Assay Diluent B to prepare a 2,000 pg/mL stock standard solution. Pipette 400 µL Assay Diluent A or 1x Assay Diluent B into each tube. Use the stock standard solution to produce a dilution series . Mix each tube thoroughly before the next transfer. Assay Diluent A or 1x Assay Diluent B serves as the zero standard (0 pg/mL). 200 µL 200myl 200 µL 200 µL 200 µL 200 µL 40 µL standard + 960 µL 2,000 666.7 222.2 74.07 24.69 8.23 2.78 0 pg/mL pg/mL pg/mL pg/mL pg/mL pg/mL pg/mL pg/mL
   5. If the Wash Concentrate (20x) (Item B) contains visible crystals, warm to room temperature and mix gently until dissolved. Dilute 20 ml of Wash Buffer Concentrate into deionized or distilled water to yield 400 ml of 1x Wash Buffer.
   6. Briefly spin the Detection Antibody vial (Item F) before use. Add 100 µL of 1x Assay Diluent B into the vial to prepare a detection antibody concentrate. Pipette up and down to mix gently (the concentrate can be stored at 4 °C for 5 days). The detection antibody concentrate should be diluted 80-fold with 1x Assay Diluent B and used in step 4 of Part VI Assay Procedure.
   7. Briefly spin the HRP-Streptavidin concentrate vial (Item G) and pipette up and down to mix gently before use. HRP- Streptavidin concentrate should be diluted 400-fold with 1x Assay Diluent B. For example: Briefly spin the vial (Item G) and pipette up and down to mix gently . Add 30 µL of HRP-Streptavidin concentrate into a tube with 12 ml 1x Assay Diluent B to prepare a final 400 fold diluted HRP- Streptavidin solution (don't store the diluted solution for next day use). Mix well.

Assay Procedure:

1. Bring all reagents and samples to room temperature (18 - 25 °C) before use. It is recommended that all standards and samples be run at least in duplicate.
   2. Add 100 µL of each standard (see Reagent Preparation step 2) and sample into appropriate wells. Cover well and incubate for 2.5 hours at room temperature or over night at 4 °C with gentle shaking.
   3. Discard the solution and wash 4 times with 1x Wash Solution. Wash by filling each well with Wash Buffer (300 myl) using a multi-channel Pipette or autowasher. Complete removal of liquid at each step is essential to good performance. After the last wash, remove any remaining Wash Buffer by aspirating or decanting. Invert the plate and blot it against clean paper towels.
   4. Add 100 µL of 1x prepared biotinylated antibody (Reagent Preparation step 6) to each well. Incubate for 1 hour at room temperature with gentle shaking.
   5. Discard the solution. Repeat the wash as in step
   6. Add 100 µL of prepared Streptavidin solution (see Reagent Preparation step 7) to each well. Incubate for 45 minutes at room temperature with gentle shaking.
   7. Discard the solution. Repeat the wash as in step
   8. Add 100 µL of TMB One-Step Substrate Reagent (Item H) to each well. Incubate for 30 minutes at room temperature in the dark with gentle shaking.
   9. Add 50 µL of Stop Solution (Item I) to each well. Read at 450 nm immediately.

Calculation of Results:

Calculate the mean absorbance for each set of duplicate standards, controls and samples, and subtract the average zero standard optical density. Plot the standard curve on log-log graph paper or using Sigma plot software, with standard concentration on the x-axis and absorbance on the y-axis. Draw the best-fit straight line through the standard points.

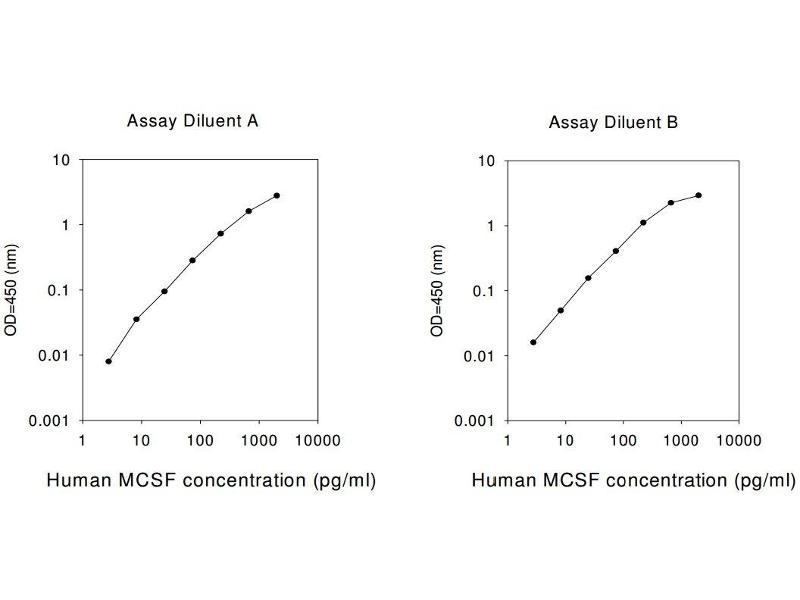

Typical Data: These standard curves are for demonstration only. A standard curve must be run with each assay. Assay Diluent A Human MCSF concentration (pg/mL) 1 10 100 1000 10000 O D =4 50 (n m ) 0.001 0.01 0.1 1 10 Assay Diluent B Human MCSF concentration (pg/mL) 1 10 100 1000 10000 O D =4 50 (n m ) 0.001 0.01 0.1 1 10
Sensitivity: The minimum detectable dose of MCSF is typically less than 5 pg/mL.
Recovery: Recovery was determined by spiking various levels of human MCSF into human serum, plasma and cell culture media. Mean recoveries are typically as follows: Sample Type Average % Recovery Range ( %) Serum 86.78 73-96 Plasma 84.67 71-95 Cell culture media 81.45 70-94
Linearity: Sample Type Serum Plasma Cell Culture Media 1:2 Average % of Expected 84 85 82 Range ( %) 78-102 79-103 77-101 1:4 Average % of Expected 87 88 84 Range ( %) 80-103 82-104 79-102
Reproducibility: Intra-Assay: CV<10 % Inter-Assay: CV<12 %

Assay Precision: Intra-Assay: CV< 10 % Inter-Assay: CV< 12 %

Restrictions: For Research Use only

Handling

Handling Advice: Avoid repeated freeze-thaw cycles.

Storage: -20 °C

Storage Comment: The entire kit may be stored at -20°C for up to 1 year from the date of shipment. Avoid repeated freeze-thaw cycles. The kit may be stored at 4°C for up to 6 months. For extended storage, it is recommended to store at -80°C.

Expiry Date: 6 months

References for M-CSF/CSF1 ELISA Kit (ABIN625043)

Iosue, Quaranta, Masciarelli, Fontemaggi, Batassa, Bertolami, Ottone, Divona, Salvatori, Padula, Fatica, Lo-Coco, Nervi, Fazi: "Argonaute 2 sustains the gene expression program driving human monocytic differentiation of acute myeloid leukemia cells." in: Cell death & disease, Vol. 4, pp. e926, (2013) (PubMed).

Rathinam, Poueymirou, Rojas, Murphy, Valenzuela, Yancopoulos, Rongvaux, Eynon, Manz, Flavell: "Efficient differentiation and function of human macrophages in humanized CSF-1 mice." in: Blood, Vol. 118, Issue 11, pp. 3119-28, (2011) (PubMed).

Istvanffy, Kröger, Eckl, Gitzelmann, Vilne, Bock, Graf, Schiemann, Keller, Peschel, Oostendorp: "Stromal pleiotrophin regulates repopulation behavior of hematopoietic stem cells." in: Blood, Vol. 118, Issue 10, pp. 2712-22, (2011) (PubMed).

Morandi, Barbetti, Riverso, Dello Sbarba, Rovida: "The colony-stimulating factor-1 (CSF-1) receptor sustains ERK1/2 activation and proliferation in breast cancer cell lines." in: PLoS ONE, Vol. 6, Issue 11, pp. e27450, (2011) (PubMed).

Yamasaki, Tsuboi, Hirao, Nampei, Yoshikawa, Hashimoto: "High oxygen tension prolongs the survival of osteoclast precursors via macrophage colony-stimulating factor." in: Bone, Vol. 44, Issue 1, pp. 71-9, (2008) (PubMed).

Penolazzi, Pocaterra, Tavanti, Lambertini, Vesce, Gambari, Piva: "Human osteoclasts differentiated from umbilical cord blood precursors are less prone to apoptotic stimuli than osteoclasts from peripheral blood." in: Apoptosis : an international journal on programmed cell death, Vol. 13, Issue 4, pp. 553-61, (2008) (PubMed).

Target Details for M-CSF/CSF1

Target: M-CSF/CSF1 (CSF1) (Colony Stimulating Factor 1 (Macrophage) (CSF1))

Alternative Name: M-CSF (CSF1 Products)

Synonyms: CSF-1 ELISA Kit, MCSF ELISA Kit, C87615 ELISA Kit, Csfm ELISA Kit, op ELISA Kit, csf1-1 ELISA Kit, zgc:172186 ELISA Kit, CSF1 ELISA Kit, csf1-2 ELISA Kit, zgc:158436 ELISA Kit, colony stimulating factor 1 ELISA Kit, colony stimulating factor 1 (macrophage) ELISA Kit, colony stimulating factor 1a (macrophage) ELISA Kit, macrophage colony-stimulating factor 1 ELISA Kit, macrophage colony stimulating factor ELISA Kit, colony stimulating factor 1b (macrophage) ELISA Kit, CSF1 ELISA Kit, Csf1 ELISA Kit, csf1a ELISA Kit, LOC396599 ELISA Kit, LOC100860895 ELISA Kit, csf1b ELISA Kit

Background: The Human MCSF ELISA (Enzyme-Linked Immunosorbent Assay) kit is an in vitro enzyme-linked immunosorbent assay for the quantitative measurement of human MCSF in serum, plasma, cell culture supernatants and urine. This assay employs an antibody specific for human MCSF coated on a 96-well plate. Standards and samples are pipetted into the wells and MCSF present in a sample is bound to the wells by the immobilized antibody. The wells are washed and biotinylated anti-human MCSF antibody is added. After washing away unbound biotinylated antibody, HRP-conjugated streptavidin is pipetted to the wells. The wells are again washed, a TMB substrate solution is added to the wells and color develops in proportion to the amount of MCSF bound. The Stop Solution changes the color from blue to yellow, and the intensity of the color is measured at 450 nm. Reproducibility: Intra-Assay: CV<10% Inter-Assay: CV<12%.

Gene ID: 1435

UniProt: P09603

Pathways: RTK Signaling
