MM-Separator PCR strip adapter

Details for Product No. ABIN1721159, Supplier: Log in to see
Application
Polymerase Chain Reaction (PCR)
Options
Supplier
Log in to see
Supplier Product No.
Log in to see
Request

Get this product for free

It's quick and easy to submit your validation proposal. I want to validate this product

Learn more

Available images

Characteristics This product is designed for manual use with 8- and 12-tube PCR strips and is complementary to MM-Separator M96.
Application Notes MM-Separators are intended for magnetic separation of MagSi beads from liquid samples for isolation and purification of nucleic acids and proteins, immunoprecipitation, immunoassays (ELISA), cell sorting, and purification of biomolecules. MM-Separators are designed for optimal magnetic bead separation in terms of speed and bead pellet positioning, as well as stability and user-friendliness.
Comment

The neodymium (NdFeB, NIB, or Neo) magnets used for the separators are the strongest permanent magnets made. These magnetic separators consists of a durable plexiglass block which is chemically inert and enables perfect visual control of the magnetic bead separation.

Protocol The adapter can be placed on the MM-Separator M96 and is suitable for users with smaller sample throughputs, preferring use of PCR tube strips over PCR plates.

Together, the MM-Separator M96 and the MM-Separator PCR strip adapter enable use of a broad range of consumables with a fast and easy solution. These separators are suitable for use with U- or V-shaped 96 well microplates and for 96-well PCR plates in various formats, and 8- and 12-tube PCR strips. MagSi-beads typically collect from a solution within 1-2 minutes, after which liquids are pipetting off easily with a single, 8- or 12-channel multi-pipette.
Restrictions For Research Use only
Precaution of Use Strong magnetic field. Before working with the magnets, take appropriate safety measures. Keep the magnets away from ferrous materials, and magnetic media like computers, videotapes, credit cards etc.
Handling Advice MM-separators should be cleaned with mild detergents. Contact with harsh chemicals or organic solvents may damage the surface. Store at room temperature in dry environment. Do not heat the magnets above 80 °C, as this will result in loss of magnetic properties!
Storage RT
Supplier Images

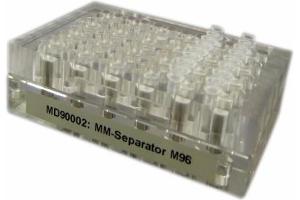

 image for MM-Separator PCR strip adapter (ABIN1721159) MM-Separator PCR strip adapter. Dimensions: 12.8 cm x 8.6 cm x 1.0 cm. Weight: ±0.1 kg

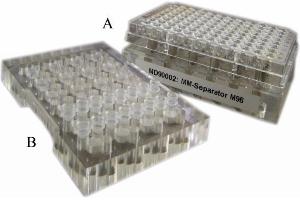

 image for MM-Separator PCR strip adapter (ABIN1721159) (A) MM-Separator M96 with full-skirt 96 well PCR plate (B). MM-Separator PCR strip ad...
