MagSi-proteomics C18 beads Bead

Conc, PD, Purif, Sep C18 alkyl group Magnetic Silica particles Bead size: 1.2 µm
Pubmed (1)
Catalog No. ABIN1721083
$394.12
Plus shipping costs $45.00
2 mL
local_shipping Shipping to: United States
Delivery in 5 to 7 Business Days
  • Target
    Alkyl
    Application
    Concentration (Conc), Protein Digestion (PD), Purification (Purif), Separation (Sep)
    Purpose
    MagSi-proteomics beads are magnetic beads that are an ideal tool for the purification, concentration and desalting of peptides and protein digests. The surface of the beads has been modified with C4, C8 and C18 -alkyl groups that are typical for reversed phase applications.
    Characteristics

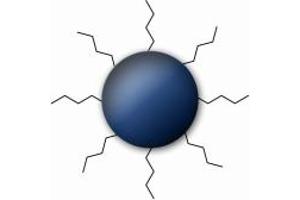

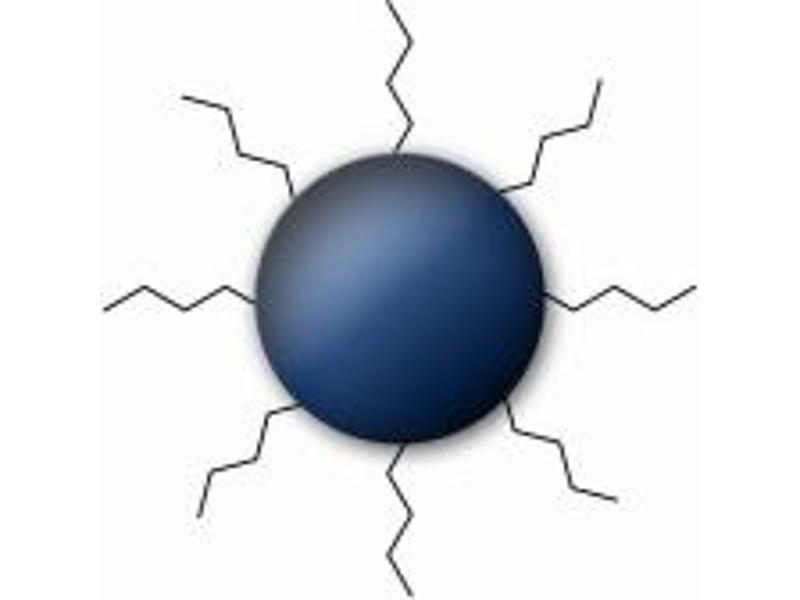

    MagSi-proteomics beads are magnetic silica beads coated with C4, C8 or C18 alkyl groups, providing a reversed phase (RP) surface chemistry. The beads are an ideal tool for protein and peptide sample concentration, desalting and fractionation, and reduce sample complexity. The different versions of MagSi-proteomics beads are intended for:

    MagSi-proteomics C4:
    capture, concentration and purification of proteins from protein mixtures in general, cell lysates, culture supernatant (e.g. secreted proteins).

    MagSi-proteomics C8:
    capture and purification of peptides and proteins from the following clinical samples: urine, saliva and CSF

    MagSi-proteomics C18:
    Desalting of peptides or protein tryptic digest prior to mass spectrometry, concentration of peptides (e.g. secreted peptides into media), capture and purification of peptides and proteins from the following clinical samples: serum and plasma

    Note: For tissue samples we recommend to use MagSi-WCX or MagSi-WAX instead.

    MagSi-proteomics C18 beads are an ideal tool for the purification, concentration and desalting of peptides and protein digests.
    MagSi-proteomics C8 beads represent an intermediate hydrophobicity (less hydrophobic than C18 and more hydrophobic than C4) and are suitable for sample preparation for proteomic profiling and biomarker research.
    The relatively low hydrophobicity of MagSi-proteomics C4 is most suitable for purification and fractionation of larger biomolecules like proteins.
    MagSi-proteomics beads are ideally suited for use in 96 well microplates on automated liquid handling platforms
    Components
    Magnetic silica particles with reversed phase chemistry on the surface (C18).
    Material not included
    Depending on the application, some buffers and materials are needed:
    Mixer/vortex to mix samples and resuspend beads
    Magnetic separator for bead separation/collection
    Solvents and reagents like ACN and TFA

    We recommend to use the following buffers with the MagSi-proteomics beads and only use HPLC grade reagents.
    Adsorption solution: 0.1% trifluoroacetic acid (TFA), NaCl up to 200 mM can be added using MagSi-proteomics C4 and C8 beads
    Washing solution: 0.1% trifluoroacetic acid (TFA)
    Desorption solution: Typically 50% can in 0.1% TFA.

    Note: Fractionation of proteins/peptides is possible by using different concentrations of ACN (e.g. 20%, 50%, 80%)
    Bead Ligand
    C18 alkyl group
    Bead Matrix
    Magnetic Silica particles
    Bead Size
    Bead size: 1.2 µm
  • Application Notes
    For better handling, detergents like 0.01% Tween 20 or 0.01% TX-100 can be used. However, please note that detergents may interfere with downstream applications like mass spectrometry. We recommend to use up to 8 mM n-octylglucoside for serum analysis.

    MagSi-proteomics beads are compatible with common solvents used in mass spectrometry applications. No degradation or decrease of functionality could has been measured after incubation of beads in ACN concentrations up to 80%, several alcohols like MeOH or EtOH, and TFA up to 0.5%.
    Comment

    Peptides and proteins bind to MagSi-proteomics beads via hydrophobic interactions between the protein/peptide and the hydrophobic surface of the beads. The higher the hydrophobic character of the proteins and peptides the stronger the binding towards the reversed phase surface. Proteins and peptides are eluted under organic solvent conditions, e.g. acetonitrile (ACN). Proteins and peptides can therefore be separated according to their relative hydrophobicities using stepwise desorption in increasing concentrations of organic solvents.

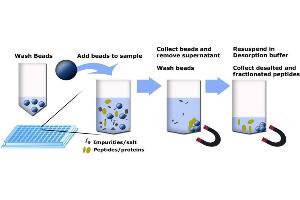

    Assay Procedure

    Washing procedure:
    1.Resuspend the beads
    2.Transfer 20 µL to a tube
    3.Place the tube on the magnet for 2 minutes.
    4.Remove the supernatant by aspiration with a pipette while the tube remains on the magnet.
    5.Remove the tube from the magnet.
    6.Add 100 µL Adsorption solution and resuspend the beads.
    7.Repeat steps 3 to 5 twice, for a total of three washes.
    8.Add 10 µL adsorption solution and resuspend.

    Peptide/protein adsorption:
    1.Add your peptide sample to the vial containing the washed MagSi beads in Adsorption solution. Add TFA to a final concentration of 0.1% while adjusting the total volume to 25 µL. Mix using a pipette.
    2.Leave at room temperature for 5-10 minutes to allow peptides/proteins to adsorb to the beads.
    3.Place the tube on the magnet. When the beads are at the tube wall and the liquid is clear, discard the supernatant.
    4.Remove the tube from the magnet, add 50 µL Washing Solution and mix.
    5.Separate the beads from the buffer using the magnet and discard the supernatant.
    6.Repeat steps 4 and 5 twice, for a total of 3 washes.

    Peptide/protein desorption:
    1.Resuspend the beads in 10 µL Desorption solution and incubate for 5 - 8 minutes at room temperature.
    2.Place the tube on the magnet and transfer the eluate containing the peptides or proteins to a new tube.
    MALDI analysis: Typically, 1 µL of the eluate and 1 µL of a saturated solution of a proper MALDI-MS matrix is mixed (typically, alpha-cyano-4-hydroxy-cinnamic acid is used for peptides < 4000 Da, for proteins > 4000 Da, sinapinic acid is used). Spotting of 1 µL of the mixture on a MALDI target generates reliable spectra.

    Restrictions
    For Research Use only
  • Format
    Liquid
    Concentration
    10 mg/mL
    Buffer
    25% ethanol in filtered demineralized water
    Handling Advice
    Store beads in well closed vial and in upright position to prevent drying of the beads.
    Do not freeze the product!
    Vortex bead suspension well before use.
    Storage
    4 °C
    Expiry Date
    12 months
  • Rizk, Sharaki, Meleis, Younan, Elkial, Moez: "Detection of Epithelial Ovarian Cancer using C8Magnetic Bead Separation and MALDI-TOF Plasma Proteome Profiling in Egyptian Females." in: Asian Pacific journal of cancer prevention : APJCP, Vol. 20, Issue 12, pp. 3603-3609, 2020 (PubMed).
