TFE3 antibody (Transcription Factor E3)

Details for Product anti-TFE3 Antibody No. ABIN967449, Supplier: Log in to see
Antigen
  • RCCP2
  • RCCX1
  • TFEA
  • bHLHe33
  • RGD1559642
  • Tcfe3
  • F830016E06Rik
  • Tfe-3
Reactivity
Human, Mouse (Murine)
102
33
13
7
7
2
1
1
1
Host
Mouse
84
15
2
1
Clonality (Clone)
Monoclonal ()
Conjugate
This TFE3 antibody is un-conjugated
5
5
5
5
5
5
1
Application
Immunoprecipitation (IP), Western Blotting (WB)
89
57
11
8
4
3
2
2
1
1
1
Supplier
Log in to see
Supplier Product No.
Log in to see
Request

Showcase your results, aid the scientific community, and receive a full refund.

Contribute a validation

Learn more

Available images

Brand BD Pharmingen™
Immunogen TFE3-L Protein
Clone G138-312
Isotype IgG1
Characteristics 1. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
2. Please refer to us for technical protocols.
3. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
Purification The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography.
Alternative Name TFE3 (TFE3 Antibody Abstract)
Background TFE3 is a ubiquitously expressed 50 kDa transcription factor containing both basic helix-loop-helix (bHLH) and leucine zipper (ZIP) motifs. It was initially identified as a protein which bound to the µE3 site in the immunoglobulin heavy chain enhancer. In addition, it binds to the MLTF/USF site in the adenovirus major late promoter. Upon binding as a dimer, it induces a minor groove-oriented bend in the DNA, similar to other HLH proteins such as TFEB, USF, myc, and max. Binding results in transcriptional activation and is mediated through the basic region located just N-terminal to the HLH domain. Clone G138-312 recognizes TFE3. The antibody was raised against a bacterially expressed TFE3-L protein consisting of 327 amino acids encoded by nucleotides 361-2469 of the cloned cDNA.
Molecular Weight 50 kDa
Research Area Chromatin and Nuclear Signaling, Transcription Factors, Adaptive Immunity
Application Notes Applications include western blot analysis (0.25-1.0 µg/ml). WI-38 cells are suggested as a positive control. Other applications include gel shift (supershifts) and immunoprecipitation, which are not routinely tested. The antibody has been used to detect in vitro translated TFE3-L and TFE3-L, expressed as a recombinant protein in bacteria. In gel shift assays, using µE3 as a probe, this antibody supershifts the complex.
Comment

Related Products: ABIN967389, ABIN968553

Restrictions For Research Use only
Format Liquid
Concentration 0.5 mg/mL
Buffer Aqueous buffered solution containing ≤0.09 % sodium azide.
Preservative Sodium azide
Precaution of Use This product contains Sodium azide: a POISONOUS AND HAZARDOUS SUBSTANCE which should be handled by trained staff only.
Storage 4 °C
Storage Comment Store undiluted at 4°C.
Supplier Images

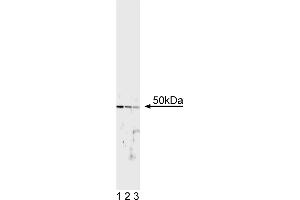

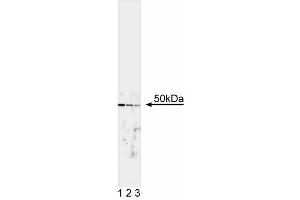

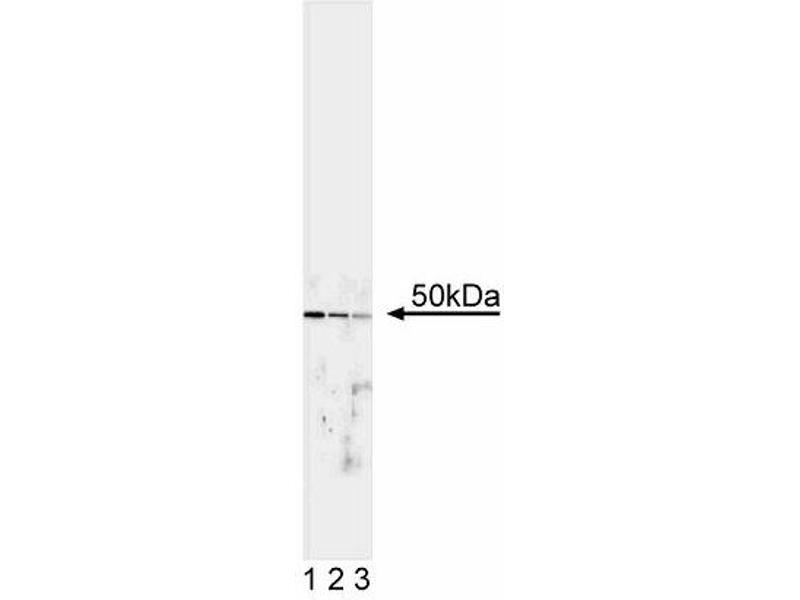

Western Blotting (WB) image for anti-TFE3 antibody (Transcription Factor E3) (ABIN967449) Western blot analysis of TFE3. Lysate from WI-38 cells was probed with anti- TFE3 (cl...

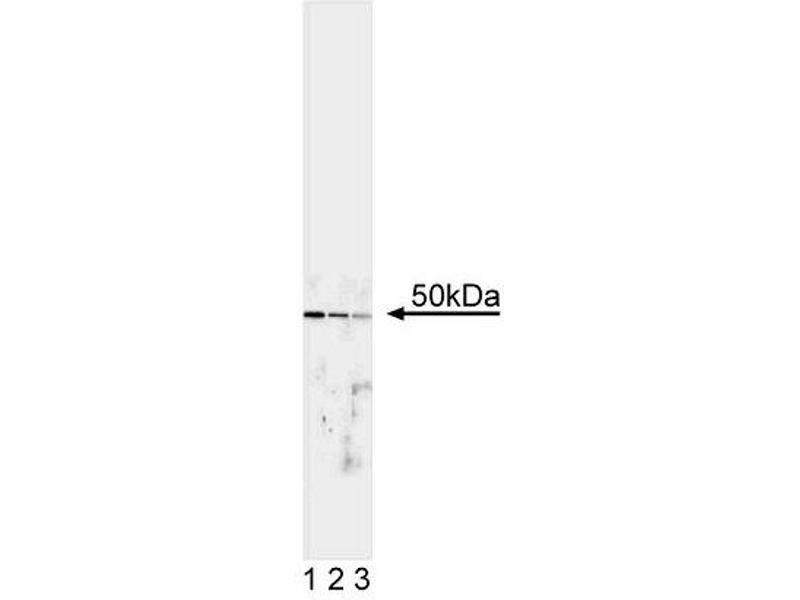

 image for anti-TFE3 antibody (Transcription Factor E3) (ABIN967449) anti-Transcription Factor E3 (TFE3) antibody (Image 2)

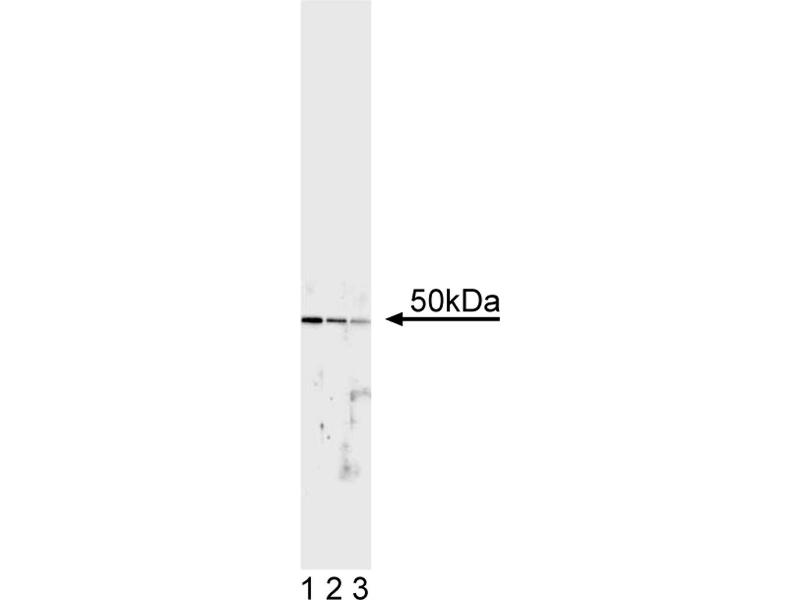

Western Blotting (WB) image for anti-TFE3 antibody (Transcription Factor E3) (ABIN967449) anti-Transcription Factor E3 (TFE3) antibody (Image 3)
Product cited in: Zhao, Zhao, Zhou et al.: "TFEC, a basic helix-loop-helix protein, forms heterodimers with TFE3 and inhibits TFE3-dependent transcription activation." in: Molecular and cellular biology, Vol. 13, Issue 8, pp. 4505-12, 1993 (PubMed).

Murre, McCaw, Baltimore: "A new DNA binding and dimerization motif in immunoglobulin enhancer binding, daughterless, MyoD, and myc proteins." in: Cell, Vol. 56, Issue 5, pp. 777-83, 1989 (PubMed).

Beckmann, Su, Kadesch: "TFE3: a helix-loop-helix protein that activates transcription through the immunoglobulin enhancer muE3 motif." in: Genes & development, Vol. 4, Issue 2, pp. 167-79, 1990 (PubMed).

Fisher, Parent, Sharp: "Myc/Max and other helix-loop-helix/leucine zipper proteins bend DNA toward the minor groove." in: Proceedings of the National Academy of Sciences of the United States of America, Vol. 89, Issue 24, pp. 11779-83, 1993 (PubMed).

Background publications Roman, Matera, Cooper et al.: "mTFE3, an X-linked transcriptional activator containing basic helix-loop-helix and zipper domains, utilizes the zipper to stabilize both DNA binding and multimerization." in: Molecular and cellular biology, Vol. 12, Issue 2, pp. 817-27, 1992 (PubMed).
