MM-Separator M96

Details for Product No. ABIN1721158, Supplier: Log in to see
Application
Separation (Sep)
Options
Supplier
Log in to see
Supplier Product No.
Log in to see
Purpose This product is designed for manual use with 96 well microplates and PCR plates.
Application Notes MM-Separators are intended for magnetic separation of MagSi beads from liquid samples for isolation and purification of nucleic acids and proteins, immunoprecipitation, immunoassays (ELISA), cell sorting, and purification of biomolecules. MM-Separators are designed for optimal magnetic bead separation in terms of speed and bead pellet positioning, as well as stability and user-friendliness.
Comment

The neodymium (NdFeB, NIB, or Neo) magnets used for the separators are the strongest permanent magnets made. These magnetic separators consists of a durable plexiglass block which is chemically inert and enables perfect visual control of the magnetic bead separation.

Protocol MM-Separator M96 enables easy separation of beads from liquids for multiple sample processing between with 8- or 12-channel pipettes. In a stable plexiglass block, 24 magnets are placed for magnetic separation of beads in 96 wells.

MM-Separator M96 allows magnetic particles to be pulled to the side of wells for optimal access to the bottom of the wells and easy supernatant removal. The product is suitable for U- and V-bottom shaped 96 well microplates and for most PCR plates, skirted or semi- and non-skirted.
Restrictions For Research Use only
Precaution of Use Strong magnetic field. Before working with the magnets, take appropriate safety measures. Keep the magnets away from ferrous materials, and magnetic media like computers, videotapes, credit cards etc.
Handling Advice MM-separators should be cleaned with mild detergents. Contact with harsh chemicals or organic solvents may damage the surface. Store at room temperature in dry environment. Do not heat the magnets above 80 °C, as this will result in loss of magnetic properties!
Storage RT
Supplier Images

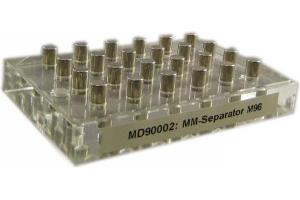

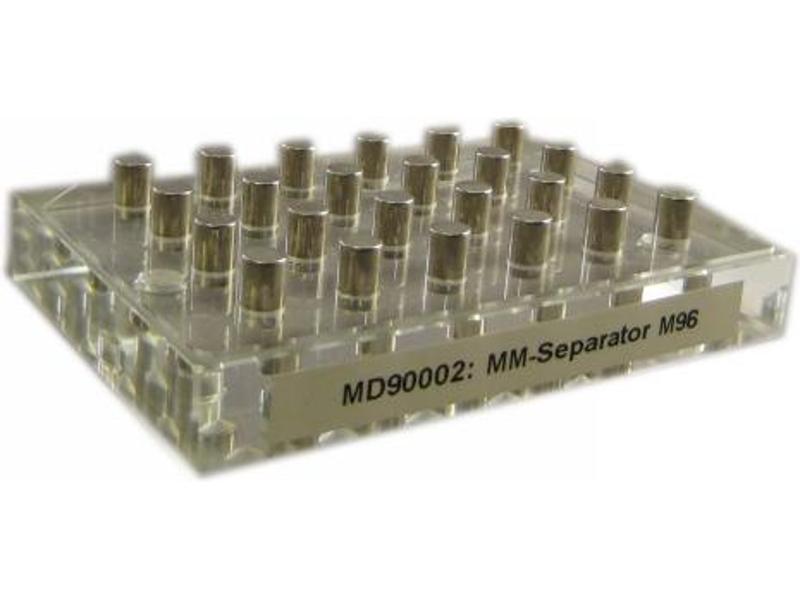

 image for MM-Separator M96 (ABIN1721158) MM-Separator M96. Dimensions: 12.8 cm x 8.6 cm x 2.5 cm. Weight: ±0.4 kg

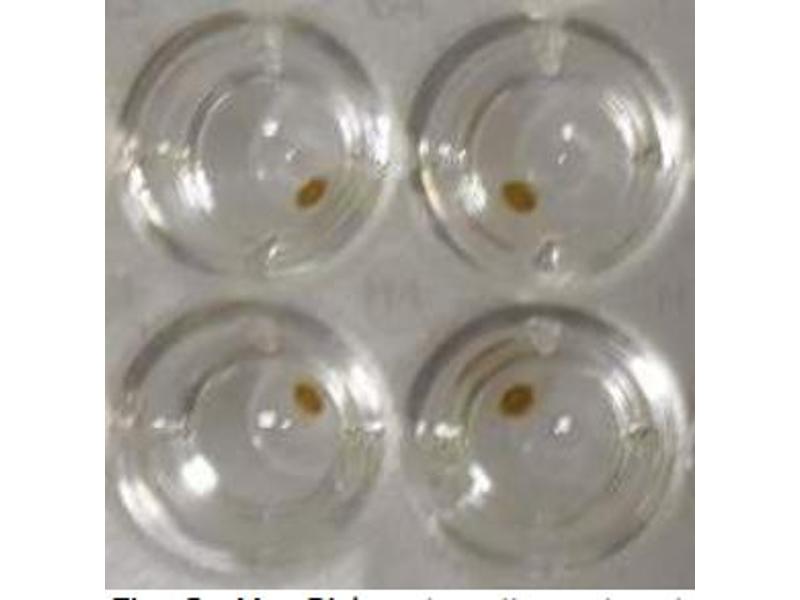

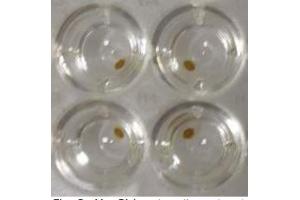

 image for MM-Separator M96 (ABIN1721158) MagSi-beads collected with MM-Separator M96 in 4 wells of a 96-well U-bottom microplate
