CXCL16 ELISA Kit

Catalog No. ABIN1672787

Product Details CXCL16 ELISA Kit

Target: CXCL16 (Chemokine (C-X-C Motif) Ligand 16 (CXCL16))

Binding Specificity: AA 49-137

Reactivity: Human

Detection Method: Colorimetric

Method Type: Sandwich ELISA

Detection Range: 93.7-6000 pg/mL

Minimum Detection Limit: 93.7 pg/mL

Application: ELISA

Purpose: Sandwich High Sensitivity ELISA kit for Quantitative Detection of Human CXCL16

Brand: PicoKine™

Sample Type: Cell Culture Supernatant, Serum, Plasma (heparin), Plasma (EDTA)

Analytical Method: Quantitative

Specificity: Expression system for standard: E.coli
Immunogen sequence: N49-P137

Cross-Reactivity (Details): There is no detectable cross-reactivity with other relevant proteins.

Sensitivity: <10pg/mL

Material not included: Microplate reader in standard size. Automated plate washer. Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection. Clean tubes and Eppendorf tubes. Washing buffer (neutral PBS or TBS). Preparation of 0.01M TBS: Add 1.2g Tris, 8.5g Nacl

Immunogen: Expression system for standard: E.coli
Immunogen sequence: N49-P137

Application Details

Application Notes: Before using Kit, spin tubes and bring down all components to bottom of tube. Duplicate well assay was recommended for both standard and sample testing.

Comment:

Sequence similarities: Belongs to the intercrine alpha (chemokine CxC) family.

Tissue Specificity: Expressed in T-cell areas. Expressed in spleen, lymph nodes, lung, kidney, small intestine and thymus. Weak expression in heart and liver and no expression in brain and bone marrow.

Plate: Pre-coated

Protocol: human CXCL16 ELISA Kit was based on standard sandwich enzyme-linked immune-sorbent assay technology. A monoclonal antibody from mouse specific for CXCL16 has been precoated onto 96-well plates. Standards(E.coli, N49-P137) and test samples are added to the wells, a biotinylated detection polyclonal antibody from goat specific for CXCL16 is added subsequently and then followed by washing with PBS or TBS buffer. Avidin-Biotin-Peroxidase Complex was added and unbound conjugates were washed away with PBS or TBS buffer. HRP substrate TMB was used to visualize HRP enzymatic reaction. TMB was catalyzed by HRP to produce a blue color product that changed into yellow after adding acidic stop solution. The density of yellow is proportional to the human CXCL16 amount of sample captured in plate.

Assay Procedure:

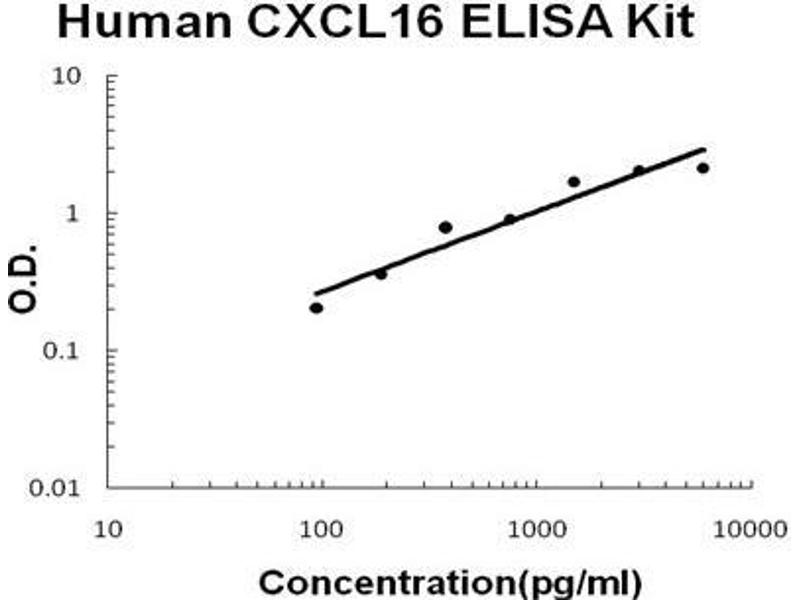

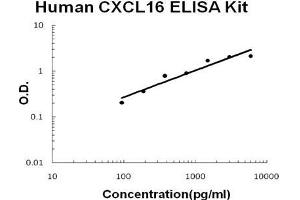

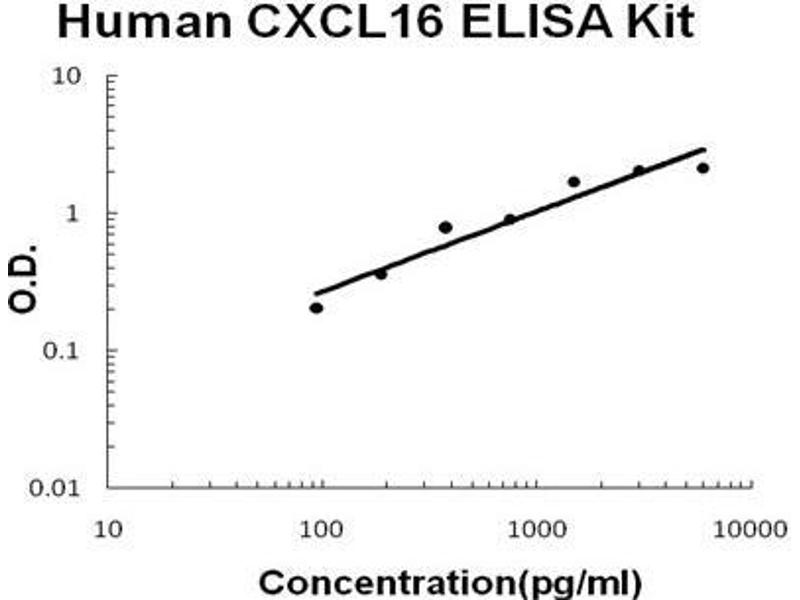

Aliquot 0.1 mL per well of the 6000pg/mL, 3000pg/mL, 1500pg/mL, 750pg/mL, 375pg/mL, 187.5pg/mL, 93.7pg/m human CXCL16 standard solutions into the precoated 96-well plate. Add 0.1 mL of the sample diluent buffer into the control well (Zero well). Add 0.1 mL of each properly diluted sample of human cell culture supernates, serum or plasma(heparin, EDTA) to each empty well. See "Sample Dilution Guideline" above for details. It is recommended that each human CXCL16 standard solution and each sample be measured in duplicate.

Assay Precision:

• Sample 1: n=16, Mean(ng/ml): 1.8, Standard deviation: 0.085, CV(%): 4.7
• Sample 2: n=16, Mean(ng/ml): 2.7, Standard deviation: 0.17, CV(%): 6.2
• Sample 3: n=16, Mean(ng/ml): 4.1, Standard deviation: 0.14, CV(%): 3.3,
• Sample 1: n=24, Mean(ng/ml): 1.9, Standard deviation: 0.12, CV(%): 6.1
• Sample 2: n=24, Mean(ng/ml): 2.7, Standard deviation: 0.21, CV(%): 7.8
• Sample 3: n=24, Mean(ng/ml): 3.9, Standard deviation: 0.22, CV(%): 5.6

Restrictions: For Research Use only

Handling

Handling Advice: Avoid multiple freeze-thaw cycles.

Storage: -20 °C,4 °C

Storage Comment: Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles

Expiry Date: 12 months

Target Details for CXCL16

Target: CXCL16 (Chemokine (C-X-C Motif) Ligand 16 (CXCL16))

Alternative Name: CXCL16 (CXCL16 Products)

Synonyms: CXCL16 ELISA Kit, 0910001K24Rik ELISA Kit, AV290116 ELISA Kit, BB024863 ELISA Kit, CXCL16v1 ELISA Kit, CXCL16v2 ELISA Kit, SR-PSOX ELISA Kit, Zmynd15 ELISA Kit, b2b498Clo ELISA Kit, CXCLG16 ELISA Kit, SRPSOX ELISA Kit, C-X-C motif chemokine ligand 16 ELISA Kit, chemokine (C-X-C motif) ligand 16 ELISA Kit, CXCL16 ELISA Kit, Cxcl16 ELISA Kit

Background:

Protein Function: Acts as a scavenger receptor on macrophages, which specifically binds to OxLDL (oxidized low density lipoprotein), suggesting that it may be involved in pathophysiology such as atherogenesis (By similarity). Induces a strong chemotactic response. Induces calcium mobilization. Binds to CXCR6/Bonzo. .

Background: Chemokine(C-X-C motif) ligand 16(CXCL16) is a small cytokine belonging to the CXC chemokine family. Larger than other chemokines(with 254 amino acids), CXCL16 is composed of a CXC chemokine domain, a mucin-like stalk, a transmembrane domain and a cytoplasmic tail containing a potential tyrosine phosphorylation site that may bind SH2. These are unusual features for a chemokine, and allow CXCL16 to be expressed as a cell surface bound molecule, as well as a soluble chemokine. CXCL16 is produced by dendritic cells found in the T cell zones of lymphoid organs, and by cells found in the red pulp of the spleen. Cells that bind and migrate in response to CXCL16 include several subsets of T cells, and natural killer T(NKT) cells. CXCL16 interacts with the chemokine receptorCXCR6, also known as Bonzo. The novel CXC-chemokine ligand 16(CXCL16) functions as transmembrane adhesion molecule on the surface of APCs and as a soluble chemoattractant for activated T cells. Expression of CXCL16 is induced by the inflammatory cytokines IFN-gamma and TNF-alpha. The gene for human CXCL16 is located on chromosome 17.

Synonyms: C-X-C motif chemokine 16,Scavenger receptor for phosphatidylserine and oxidized low density lipoprotein,SR-PSOX,Small-inducible cytokine B16,Transmembrane chemokine CXCL16,CXCL16,SCYB16, SRPSOX,UNQ2759/PRO6714,

Full Gene Name: C-X-C motif chemokine 16

Cellular Localisation: Cell membrane, Single-pass type I membrane protein . Secreted. Also exists as a soluble form.

Gene ID: 58191

UniProt: Q9H2A7
