TIM3 ELISA Kit

Catalog No. ABIN5692221

Mouse TIM3 ELISA Kit, Colorimetric assay for quantification of Mouse TIM3.

Quick Overview for TIM3 ELISA Kit (ABIN5692221)

Target: TIM3 (TIM 3) (Hepatitis A Virus Cellular Receptor 2 (TIM 3))

Binding Specificity: AA 20-193

Reactivity: Mouse

Detection Method: Colorimetric

Method Type: Sandwich ELISA

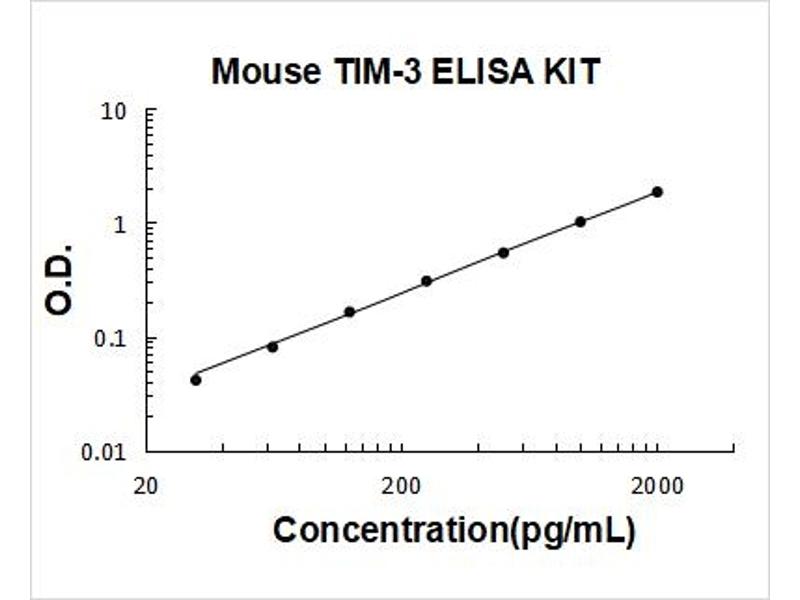

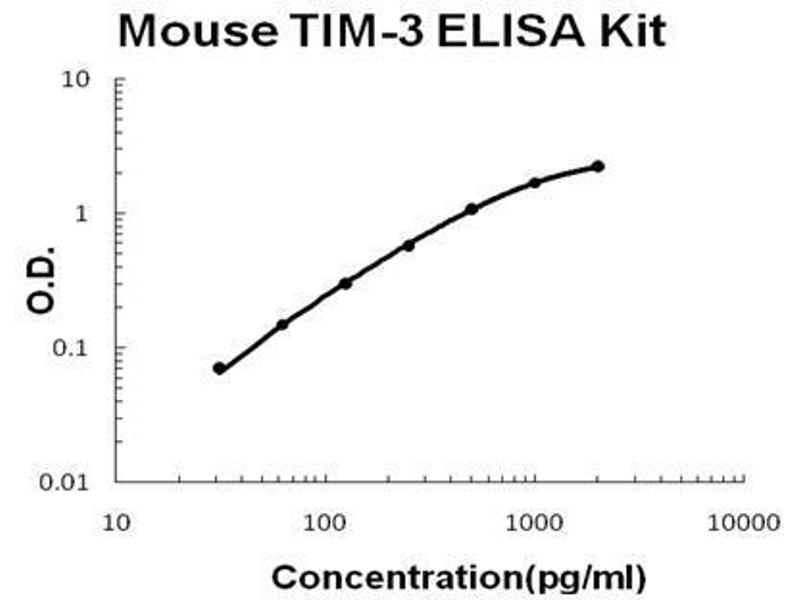

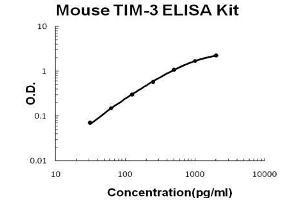

Detection Range: 31.2 pg/mL - 2000 pg/mL

Application: ELISA

Sample Type: Cell Culture Supernatant, Plasma (EDTA), Plasma (heparin), Serum

Product Details TIM3 ELISA Kit

Minimum Detection Limit: 31.2 pg/mL

Purpose: Sandwich Mouse TIM-3/HAVCR2 ELISA Kit to quantitate Mouse Havcr2 in cell culture supernatants, serum and plasma (heparin, EDTA).

Analytical Method: Quantitative

Specificity: Expression system for standard: NS0
Immunogen sequence: R20-A193

Capture antibody and Detection antibody: monoclonal antibody from rat, biotinylated polyclonal antibody from goat

Cross-Reactivity (Details): There is no detectable cross-reactivity with other relevant proteins.

Sensitivity: < 10 pg/mL

Components:

1. Pre-coated 96-well strip microplate
2. Standard
3. Biotinylated antibody (100x)
4. Avidin-Biotin-Peroxidase Complex (100x)
5. Sample Diluent
6. Antibody Diluent
7. Avidin-Biotin-Peroxidase Diluent
8. Color Developing Reagent (TMB)
9. Stop Solution
10. Wash Buffer (25x)
11. Adhesive plate sealers

Material not included: Microplate Reader capable of reading absorbance at 450nm. Incubator. Automated plate washer (optional). Pipettes and pipette tips capable of precisely dispensing 0.5 μL through 1 mL volumes of aqueous solutions. Multichannel pipettes are recommended for large amount of samples. Deionized or distilled water. 500 mL graduated cylinders. Test tubes for dilution.

Application Details

Application Notes: Before using Kit, spin tubes and bring down all components to bottom of tube. Duplicate well assay was recommended for both standard and sample testing.

Sample Volume: 100 μL

Plate: Pre-coated

Protocol: ELISA Kit is based on standard sandwich enzyme-linked immune-sorbent assay technology. An antibody has been precoated onto 96-well plates. Standards and test samples are added to the wells, a biotinylated detection antibody specific for target is added subsequently and then followed by washing with PBS or TBS buffer. Avidin-Biotin-Peroxidase Complex was added and unbound conjugates were washed away with PBS or TBS buffer. HRP substrate TMB was used to visualize HRP enzymatic reaction. TMB was catalyzed by HRP to produce a blue color product that changed into yellow after adding acidic stop solution. The density of yellow is proportional to the target amount in sample captured in plate.

Assay Precision: Intra-Assay Precision (CV%): 7.3%, 6%, 4.1%
Inter-Assay Precision (CV%): 8.6%, 7.2%, 5%

Restrictions: For Research Use only

Handling

Handling Advice: Avoid multiple freeze-thaw cycles.

Storage: 4 °C,-20 °C

Storage Comment: Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)

Expiry Date: 12 months

Target Details for TIM3

Target: TIM3 (TIM 3) (Hepatitis A Virus Cellular Receptor 2 (TIM 3))

Alternative Name: Havcr2

Target Type: Virus

Background:

Background: Hepatitis A virus cellular receptor 2 (HAVCR2), also known as T-cell immunoglobulin and mucin-domain containing-3 (TIM-3), is a protein that in mouses is encoded by the HAVCR2 gene. The protein encoded by this gene belongs to the immunoglobulin superfamily, and TIM family of proteins. CD4-positive T helper lymphocytes can be divided into types 1 (Th1) and 2 (Th2) on the basis of their cytokine secretion patterns. Th1 cells are involved in cell-mediated immunity to intracellular pathogens and delayed-type hypersensitivity reactions, whereas, Th2 cells are involved in the control of extracellular helminthic infections and the promotion of atopic and allergic diseases. This protein is a Th1-specific cell surface protein that regulates macrophage activation, and inhibits Th1-mediated auto- and alloimmune responses, and promotes immunological tolerance.

Gene Full Name: hepatitis A virus cellular receptor 2

Gene ID: 171285

UniProt: Q8VIM0

Pathways: Regulation of Lipid Metabolism by PPARalpha, Cancer Immune Checkpoints
