CD80 ELISA Kit

Catalog No. ABIN921092

This Colorimetric ELISA kit is designed for the quantitative measurement of Mouse CD80. There are 2 publications available.

Quick Overview for CD80 ELISA Kit (ABIN921092)

Target: CD80

Binding Specificity: AA 37-245

Reactivity: Mouse

Detection Method: Colorimetric

Method Type: Sandwich ELISA

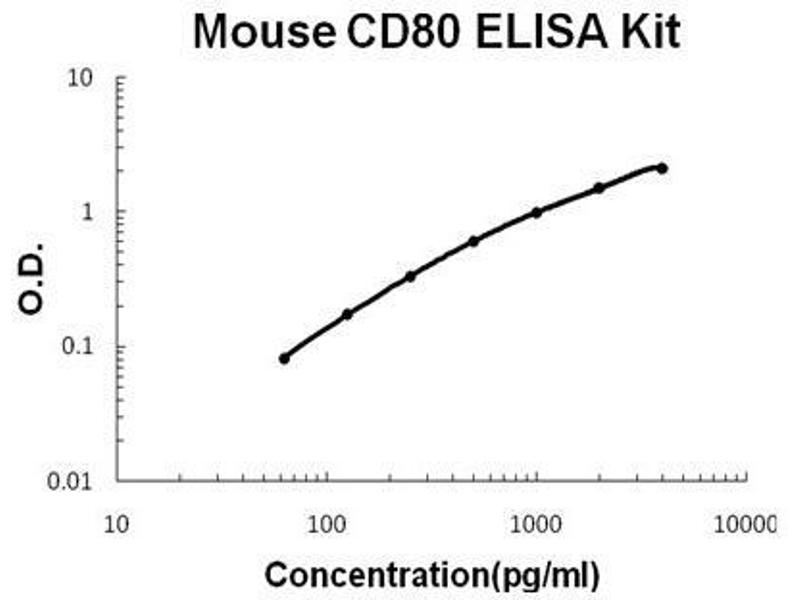

Detection Range: 62.5 pg/mL - 4000 pg/mL

Application: ELISA

Sample Type: Cell Culture Supernatant, Serum

Product Details CD80 ELISA Kit

Minimum Detection Limit: 62.5 pg/mL

Purpose: Sandwich Mouse B7-1/CD80 ELISA Kit to quantitate Mouse Cd80 in cell culture supernatants and serum.

Analytical Method: Quantitative

Specificity: Expression system for standard: NS0
Immunogen sequence: D37-K245

Capture antibody and Detection antibody: monoclonal antibody from rat, polyclonal antibody from goat

Cross-Reactivity (Details): There is no detectable cross-reactivity with other relevant proteins.

Sensitivity: < 10 pg/mL

Components:

1. Pre-coated 96-well strip microplate
2. Standard
3. Biotinylated antibody (100x)
4. Avidin-Biotin-Peroxidase Complex (100x)
5. Sample Diluent
6. Antibody Diluent
7. Avidin-Biotin-Peroxidase Diluent
8. Color Developing Reagent (TMB)
9. Stop Solution
10. Wash Buffer (25x)
11. Adhesive plate sealers

Material not included: Microplate Reader capable of reading absorbance at 450nm. Incubator. Automated plate washer (optional). Pipettes and pipette tips capable of precisely dispensing 0.5 μL through 1 mL volumes of aqueous solutions. Multichannel pipettes are recommended for large amount of samples. Deionized or distilled water. 500 mL graduated cylinders. Test tubes for dilution.

Application Details

Application Notes: Before using Kit, spin tubes and bring down all components to bottom of tube. Duplicate well assay was recommended for both standard and sample testing.

Sample Volume: 100 μL

Plate: Pre-coated

Protocol: ELISA Kit is based on standard sandwich enzyme-linked immune-sorbent assay technology. An antibody has been precoated onto 96-well plates. Standards and test samples are added to the wells, a biotinylated detection antibody specific for target is added subsequently and then followed by washing with PBS or TBS buffer. Avidin-Biotin-Peroxidase Complex was added and unbound conjugates were washed away with PBS or TBS buffer. HRP substrate TMB was used to visualize HRP enzymatic reaction. TMB was catalyzed by HRP to produce a blue color product that changed into yellow after adding acidic stop solution. The density of yellow is proportional to the target amount in sample captured in plate.

Assay Precision: Intra-Assay Precision (CV%): 6.5%, 6.5%, 7.8%
Inter-Assay Precision (CV%): 8.4%, 8.3%, 8.2%

Restrictions: For Research Use only

Handling

Handling Advice: Avoid multiple freeze-thaw cycles.

Storage: -20 °C,4 °C

Storage Comment: Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)

Expiry Date: 12 months

References for CD80 ELISA Kit (ABIN921092)

Veinalde, Grossardt, Hartmann, Bourgeois-Daigneault, Bell, Jäger, von Kalle, Ungerechts, Engeland: "Oncolytic measles virus encoding interleukin-12 mediates potent antitumor effects through T cell activation." in: Oncoimmunology, Vol. 6, Issue 4, pp. e1285992, (2017) (PubMed).

Du, Dong, Zhao, Fu, Wang, Chen, Ou, Li, Sun, Tang, Song: "Immunostimulatory and anti-neoplasm effects of a novel palindrome CpG oligodeoxynucleotide in mice." in: Acta pharmacologica Sinica, Vol. 33, Issue 8, pp. 1047-54, (2012) (PubMed).

Target Details for CD80

Target: CD80

Alternative Name: CD80

Background:

Background: The protein CD80 (Cluster of Differentiation 80) is a molecule found on activated B cells and monocytes which provides a costimulatory signal necessary for T cell activation and survival. It is also known as B7.1. The cDNA for B7-1 predicts a type I membrane protein, i.e., one synthesized with a signal peptide that is cleaved upon translocation across the endoplasmic membrane. The protein is predicted to contain 2 extracellular domains structurally similar to those of Ig, a hydrophobic transmembrane region, and a short cytoplasmic domain. The CD80 and CD86 (601020) genes encode B7-1 and B7-2, respectively, which are structurally similar members of the immunoglobulin superfamily expressed on a variety of hematopoietic cell types. stated that B7-1 and B7-2 provide a costimulatory signal to T cells by interacting with CD28 and CTLA4. The standard product used in this kit is recombinant B7-1, D37-K245, which is composed of two single chains acids with the dipolymer.

Gene Full Name: CD80 antigen

Gene ID: 12519

UniProt: Q00609

Pathways: TCR Signaling, Fc-epsilon Receptor Signaling Pathway, EGFR Signaling Pathway, Neurotrophin Signaling Pathway, Positive Regulation of Immune Effector Process, Cancer Immune Checkpoints
